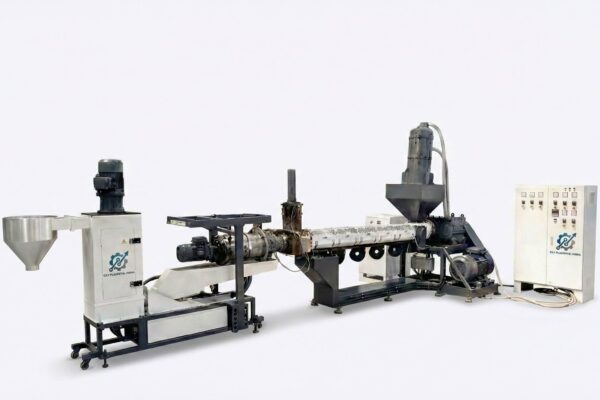

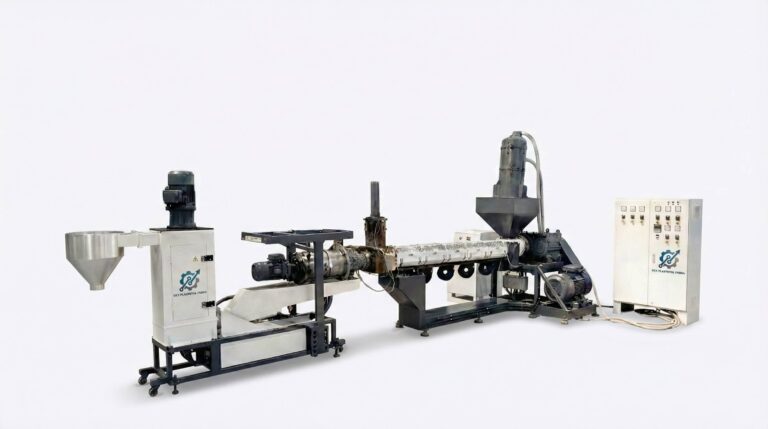

Compounding Extruder

APPLICATION

Features

Features: Compounding Extruder Machine

  • Good quality compounding.

  • Heaters are fully enclosed to ensure protection and safety.

  • Air knife for moisture-free strands and efficient cooling of the strands and pellets (on request).

  • Cold start protection.

  • Synchronized control for pelletizer to avoid overfeed or underfeed strand to the pelletizer.

  • Microprocessor-based machine control panel with digital display.

  • Optional hopper loader (on request).

  • Optional die face cutter (on request).

  • Optional cooling tower / chiller (on request).

  • Optional PLC (on request).

Technical Specifications

Particular Unit DREX-80 DREX-90 DREX-100 DREX-110
Screw Diameter mm 80 90 100 110
L/D Ratio L/D 28:1 28:1 28:1 28:1
Main Extruder Motor kw 18.25 30 37.25 45
Output (LLDPE Virgin) Kgs/hr 100 to 120 150 to 160 200 to 210 250 to 300
Total Load kw 21.00 30.00 45.00 60.00
Floor Space (L × B × H) Feet 25 × 6 × 6 28 × 6 × 6 30 × 6 × 6 35 × 6 × 6
